Brand: BOSCH
Product Code: 0986024360-1-20
Short descriptio

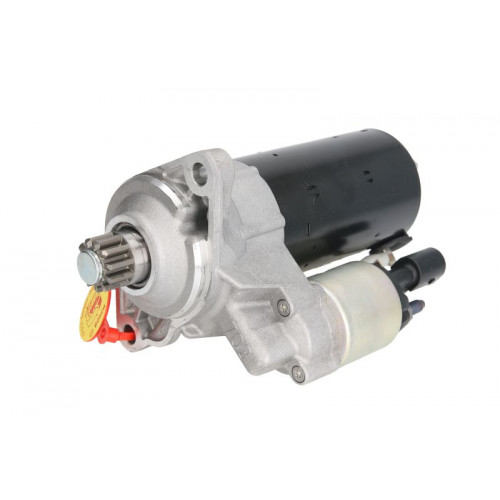

Starter starter 12V 2kW fits. AUDI A3 TT SEAT ALTEA ALTEA XL LEON TOLEDO III SKODA OCTAVIA II SUPERB II VW CADDY III VW SCIROCCO III (137, 138), Compartment, 05.2008 - 11.2017 BOSCH 0 986 024 360 FITS THE FOLLOWING MODE... Read more...
288.73€
- Availability: In Stock
Starter starter 12V 2kW fits. AUDI A3 TT SEAT ALTEA ALTEA XL LEON TOLEDO III SKODA OCTAVIA II SUPERB II VW CADDY III VW SCIROCCO III (137, 138), Compartment, 05.2008 - 11.2017 BOSCH 0 986 024 360
FITS THE FOLLOWING MODELS: TDI 2.0 (2009- 2017) Diesel 125Kw/170Hp, CBBB, CFGB
TDI 2.0 (2008-2017) Diesel 103Kw/140Hp, CBDB, CFHC
Technical specifications: Voltage: 12
Number of teeth: 11
Electric motor power: 2
Length: 255
Bore-?: 11
Position/Grade: rechts
Clamp: 50
Clamp: 30
Direction of rotation: counter-clockwise rotation
Flange diameter: 76.2
Number of threaded holes: 0
Bore-? 2: 11
Starter variant: free return
Number of fixing holes: 2
Fixing angle (Degrees): 73
Initial position-Pinion: 42.5
Angular size of fixing hole: 73
OE CODES: 4047024852952 ; ; 02E911023L; 02E911023L; 02E911023LX; 02E911023H; 02E911023L; 02E911023L; 02E911023LX; 02E911023L
