Starter starter 12V 22kW fits. FORD FIESTA IV FIESTA HATCHBACK FIESTA-MINIVAN FOCUS I FOCUS I-KOMBI 1.8D 08.98-03.05 FORD FOCUS (DAW, DBW), Hatchback, 09.1998 - 11.2009 BOSCH 0 986 022 631

Starter starter 12V 22kW fits. FORD FIESTA IV FIESTA-HATCHBACK FIESTA-MINIVAN FOCUS I FOCUS I-KOMBI 1.8D 08.98-03.05 FORD FOCUS (DAW, DBW), Hatchback, 09.1998 - 11.2009 BOSCH 0 986 022 631
FITS THE FOLLOWING MODELS: DI / TDDi 1.8 (1999-2004) Diesel 55Kw/75Hp, BHDA, BHDB
TDCi 1.8 (2002-2004) Diesel 74Kw/100Hp, FFDA
TDCi 1.8 (2001-2004) Diesel 85Kw/115Hp, F9DA, F9DB
Turbo DI / TDDi 1.8 (1998-2004) Diesel 66Kw/90Hp, C9DA, C9DB, C9DC

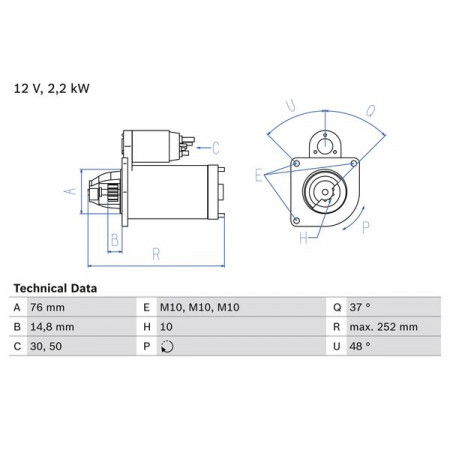

Technical specifications: Voltage: 12
Number of teeth: 10
Electric motor power: 2.2
Length: 252
Thread size: M10
Position/ Degrees: links
Clamp: 50
Clamp: 30
Direction of rotation: rotation counterclockwise
Flange diameter: 76
Number of threaded holes: 3
Thread size 1: M10
Thread size 2: M10
Starter variant: individual bearings
Number of fixing holes : 0
Fixing angle (Degrees): 48
Initial position-Pinion: 14.8
Angular hole size supply: 37
Angular size of fixing hole: 48
OE CODES: 4047024414839 ; ; 98ab11000ad; 1S4U11000AA ; 1133994; 97BB11000B3D ; 1S4U11000AB
