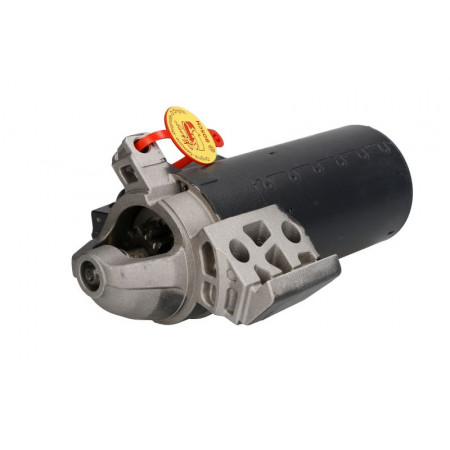

Starter starter 12V 22kW fits. BMW 1 E81 1 E82 1 E87 1 E88 1 F20 1 F21 2 F22 F87 3 E90 3 E91 3 E92 3 E93 3 F30 F80 3 BMW 1 (E88), Convertible, 12.2007 - 12.2013 BOSCH 0 986 022 020

Starter starter 12V 22kW fits. BMW 1 E81 1 E82 1 E87 1 E88 1 F20 1 F21 2 F22 F87 3 E90 3 E91 3 E92 3 E93 3 F30 F80 3 BMW 1 (E88), Convertible, 12.2007 - 12.2013 BOSCH 0 986 022 020
FITS THE FOLLOWING MODELS: 118 d 2.0 (2008-2013) Diesel 105Kw/143Hp, N47 D20 A, N47 D20 C
118 d 2.0 (2008-2013) Diesel 100Kw/136Hp, N47 D20 A, N47 D20 C
120 d 2.0 (2008-2013) Diesel 120Kw/163Hp, N47 D20 A, N47 D20 C
120 d 2.0 (2008-2013) Diesel 145Kw/197Hp, N47 D20 C
120 d 2.0 ( 2008-2013) Diesel 130Kw/177Hp, N47 D20 A, N47 D20 C
123 d 2.0 (2008-2013) Diesel 150Kw/204Hp, N47 D20 B, N47 D20 D
Technical specifications: Voltage: 12
Number of teeth: 11
Electromotive power: 2.2
Length: 241
Bore-?: 9
Position/Grade: rechts
Clamp: 30
Direction of rotation: counter-clockwise rotation
Flange diameter: 69
Number of threaded holes: 0
Bore-? 2: 9
Bore-? 3: 9
Starter variant: individual bearings
Number of fixing holes: 3
Fixing angle (Degrees): 45
Initial position-Pinion: 5.1
Angular size of feed hole: 0
Fixing hole angular size: 45
OE CODES: 4047024638464 ; ; 12418574102 ; 12417812034 ; 12418506657; 12418577006 ; 12417823701 ; 12418515796; 12418570238 ; 12418515795; 12418509198; 12418581097 ; 12417798006 ; 12418570383 ; 12418519154 ; 12417804140 ; 12417823700 ; 12418515901
