Starter starter 12V 1kW fits. AUDI A3 SEAT ALTEA ALTEA XL CORDOBA IBIZA III IBIZA IV IBIZA IV SC LEON TOLEDO III SKOD SKODA OCTAVIA II (1Z3), Hatchback, 02.2004 - 06.2013 BOSCH 0 986 020 220

Starter starter 12V 1kW fits. AUDI A3 SEAT ALTEA ALTEA XL CORDOBA IBIZA III IBIZA IV IBIZA IV SC LEON TOLEDO III SKOD SKODA OCTAVIA II (1Z3), Hatchback, 02.2004 - 06.2013 BOSCH 0 986 020 220
FITS THE FOLLOWING MODELS: 1.6 (2004-2013) Petrol 75Kw/102Hp, BGU, BSE, BSF, CCSA, CMXA
LPG 1.6 (2009-2012) Petrol 75Kw/102Hp, CHGA
MultiFuel 1.6 (2008-2013) Petrol 75Kw/102Hp, CCSA, CMXA

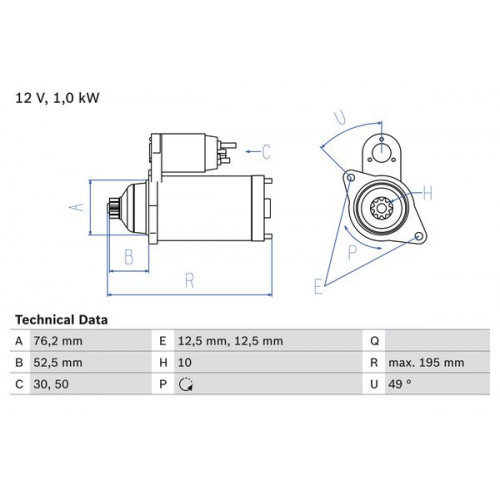

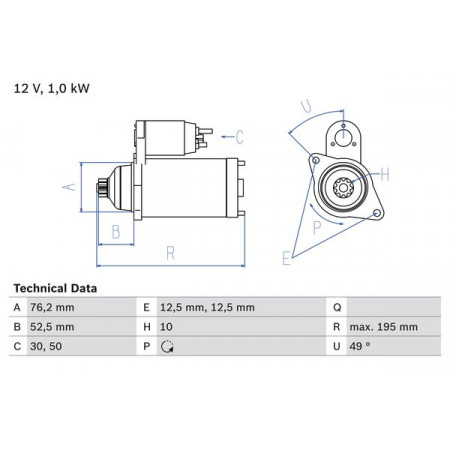

Technical specifications: Voltage : 12
Number of teeth: 10
Power electric motor: 1
Length: 195
Bore-?: 12.5
Position/Grades: left
Clamp: 50
Clamp: 30
Direction of rotation: counter-clockwise rotation< br> Flange diameter: 76.2
Number of threaded holes: 0
Bore-? 2: 12.5
Starter variant: free return
Number of fixing holes: 2
Fixing angle (Degree): 49
Initial position-Pinion: 52.5
Angular size of fixing hole: 49
OE CODES: 3165143526514 ; ; 02T911024Q; 02T911023T; 02T911023M; 02T911023M; 02T911023T; 02T911024Q; 02T911023MX; 02T911023T; 02T911024Q; 02T911023TX; 02T911023M; 02T911023M; 02T911024Q; 02T911023TX; 02T911023T; 02T911023MX; 02T911023T; 02T911023M
