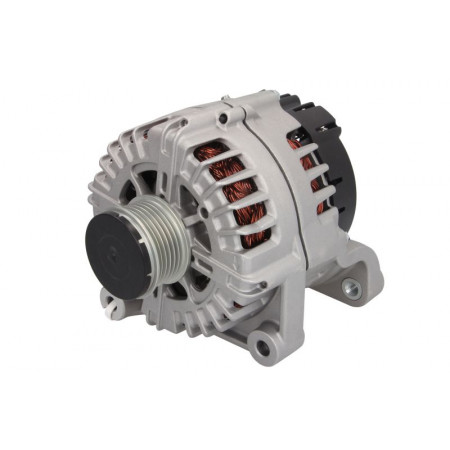

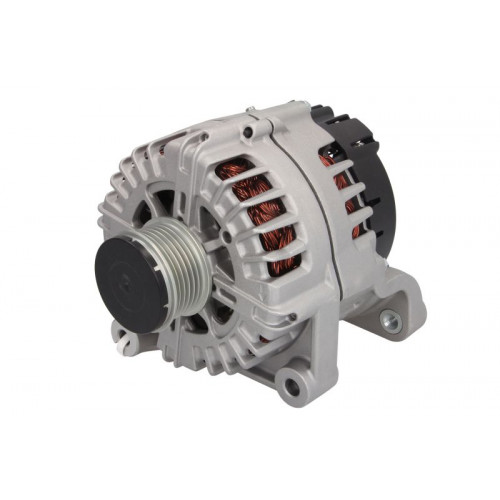

Alternator BMW 3 Touring (F31) STARDAX STX102189

Alternator BMW 3 Touring (F31) STARDAX STX102189
Alternator (14V, 180A) BMW 1 (F20), 1 (F21), 3 (F30, F80), 3 (F31), 3 GRAN TURISMO (F34), 4 ( F32, F82) 1.6D/2.0D/3.0 12.10-
Number of grooves 6pcs
Puller Yes
Charging current 180A
Voltage 14V
Weight 7.80 kg
Voltage [ V] 14.0
Generator load current [A] 180.0
Seat belt type 3-point fixation
Position/Grade L 95
Direction of rotation counter-clockwise rotation
Roller with roller belt
Number of ribs 6.0
Belt pulley -? [mm] 55.0
Coupling/clip without tachometer connection
Extended article/Extension information with integrated regulator
PART FITS: 325 d N47 D20 D 2012/09 - 2016/02 160 218 1995
320 d xDrive N47 D20 C 2012/01 - 2015/06 135 184 1995
318 d N47 D20 C 2011/07 - 2015/06 105 143 1995
318 d xDrive N47 D20 C 2013/01 - 2015/ 05 105 143 1995
320 d xDrive N47 D20 C, B47 D20 A 2012/01 - n/a 120 163 1995
320 d N47 D20 C, B47 D20 A 2011/07 - n/a 120 163 1995< br>316 d B47 D20 A, N47 D20 C 2012/02 - n/a 85 116 1995
325 d N47 D20 D 2012/09 - 2016/02 155 211 1995
320 d N47 D20 C 2011/07 - 2016/02 147 200 1995
320 d xDrive N47 D20 C 2012/01 - 2015/06 147 200 1995
320 d N47 D20 C 2011/07 - 2016/02 135 184 1995
318 d N47 D20 C, B47 D20 A 2011/07 - n/a 100 136 1995
Equivalents: 439793
